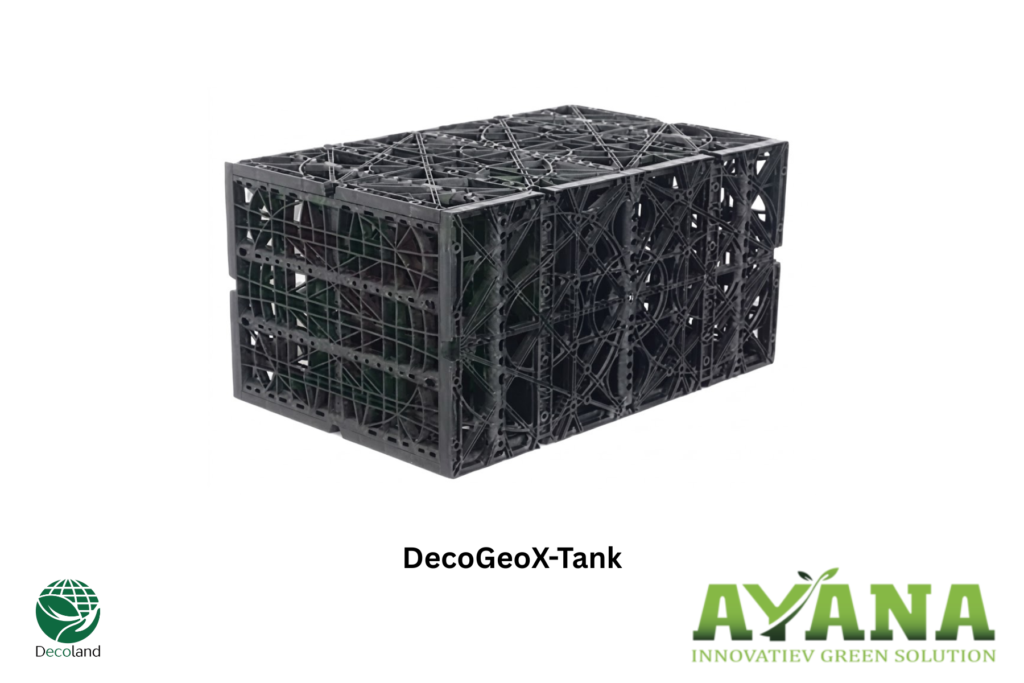

DecoGeoX-Tank
Modular Underground Stormwater Storage & Infiltration System
Product Overview
DecoGeoX-Tank is an advanced underground stormwater management system engineered to maximize storage capacity while minimizing installation space. With an impressive 95% void ratio, the modular blocks efficiently collect, store, infiltrate, or recycle stormwater beneath the surface.
The system replaces traditional retention ponds, allowing valuable land to remain usable for parking areas, roads, sports facilities, gardens, and commercial developments. Lightweight, durable, and manufactured from recycled polypropylene, DecoGeoX-Tank supports modern sustainable drainage (SuDS) and green infrastructure projects.
Technical Specifications
| Parameter / Specification | Technical Value |
|---|---|
| Material | Recycled Polypropylene (PP) |
| System Type | Modular Geo-Cellular Stormwater Tank |
| Dimensions | 500 × 600 × 150 mm / 500 × 600 × 200 mm |
| Void Ratio | 95% |
| Color | Black |
| Application | Underground Installation |
| Lightweight | Yes |
| Recyclable | 100% |
Key Applications
- Underground stormwater storage
- Stormwater detention systems
- Stormwater infiltration
- Water recycling systems
- Driveways
- Parking lots
- Sports fields
- Airport runways
- Commercial plazas
- Playgrounds
- Gardens
- Wastewater management
- Maximizes underground storage capacity
- 95% storage void ratio
- Space-saving design
- Replaces traditional retention ponds
- Lightweight modular construction
- Quick installation
- Manufactured from recycled polypropylene
- Supports sustainable drainage systems (SuDS)
- Long service life
