Geocell
High-Performance HDPE Cellular Confinement & Soil Stabilization System
Product Overview

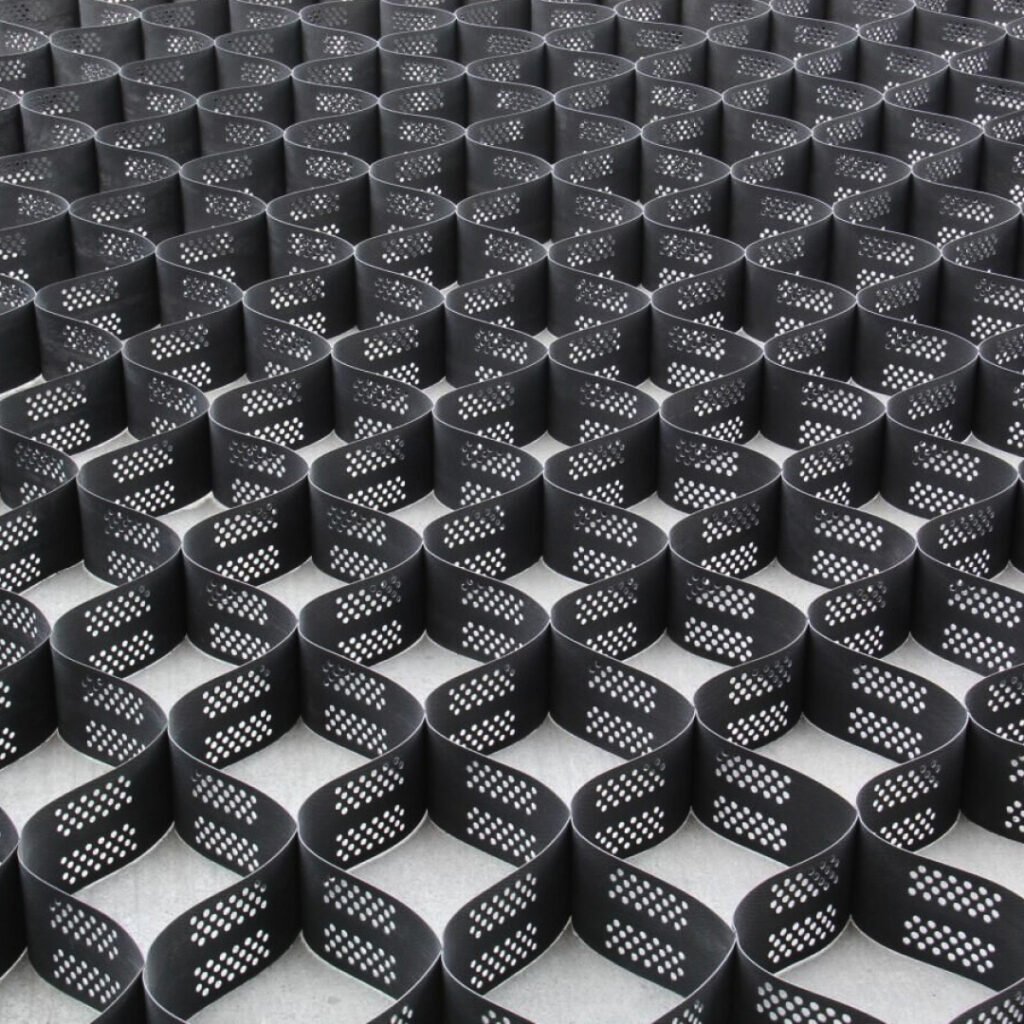

Geocell (Cellular Confinement System) is a high-performance three-dimensional honeycomb structure manufactured from High Density Polyethylene (HDPE). It is designed to provide long-lasting soil stabilization, erosion control, and ground reinforcement for infrastructure and landscape projects. Its perforated and textured cell structure improves drainage, securely retains infill materials, and enhances structural performance on slopes, embankments, and hydraulic applications. Suitable for filling with sand, gravel, soil, or concrete depending on project requirements.
Technical Specifications
| Parameter / Specification | Technical Value |
|---|---|
| Material | High Density Polyethylene (HDPE) |
| Structure | Three-Dimensional Honeycomb |
| Cell Height | 75 / 100 / 150 / 200 / 250 / 300 mm |
| Strip Thickness | 1.2 – 1.5 mm |
| Welding Distance | 360 / 460 / 660 mm |
| Surface | Textured & Perforated |
| Welding Method | Ultrasonic Welding |
| Infill Materials | Sand, Gravel, Soil, Concrete |
Key Applications
- Three-dimensional honeycomb structure
- Manufactured from High Density Polyethylene (HDPE)
- Excellent soil stabilization and erosion control
- Perforated cells for efficient water drainage
- Textured cell surface for improved infill retention
- Ultrasonic welded joints for superior strength
- Compatible with sand, gravel, soil, and concrete infill
- Long service life with low maintenance
