Viaflex®
The Universal Aluminum Profile
Product Overview

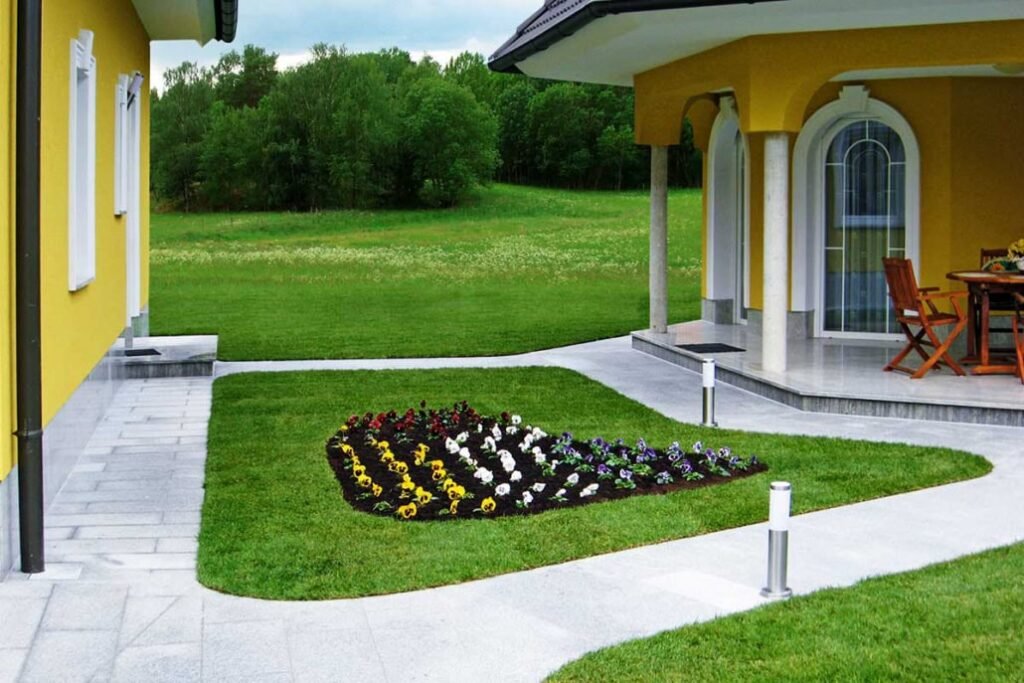

Viaflex® is a universal aluminum profile designed to create clean, easily maintainable borders between landscape areas. Its specially engineered aluminum profile combines flexibility with exceptional sturdiness, making it suitable for pavement applications using water-bound materials, gravel, rock, flagstone or asphalt. It is also ideally suited for green roofing applications, planting bed borders and lawn edging.
The Viaflex® pavement and bed edging system enables rapid, low-waste and free-form installation without special tools. Its lightweight yet durable construction resists rotting, collapsing and rusting. Rounded edges improve safety during installation and maintenance, while the special profile design allows sections to be connected without screws or rivets.
Technical Specifications
| Parameter / Specification | Technical Value |
|---|---|
| Material | Alloy aluminium EN AW-6060 |
| Surface | Natural finish aluminium or anodised black E6/C35 (97 mm height) |
| Section Heights | 97 mm, 150 mm and 200 mm |
| Available Lengths | 2,500 mm and 5,000 mm |
| Soil Bracket Lengths | 300 mm or 400 mm |

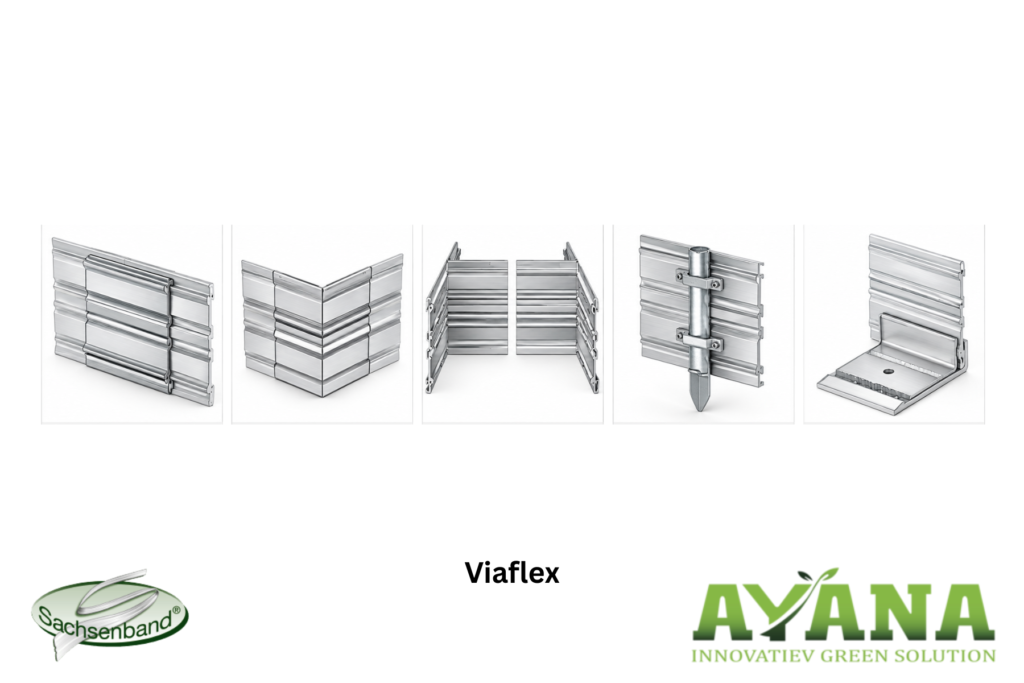

| Profile Bracket Dimensions | H/L/W = 25/65/80 mm or 25/65/30 mm |
| Profile Bracket Hole | Ø 7.5 mm |
| Joint Connector Delivery Length | 100 mm |
| Corner Connectors | 90° and 270° |
| Corner Connector Legs | Approx. 75 + 75 mm |
| T-Elements | Approx. 75 + 75 + 75 mm |
| Preformed Bow Diameters | Ø 500 mm, Ø 1,000 mm and Ø 1,500 mm |
| On-site Bending Radius | Approx. 1,500 mm and above |
Key Applications
- Path limitations
- Lawn edges
- Flowerbed enclosures
- Roof gardens
