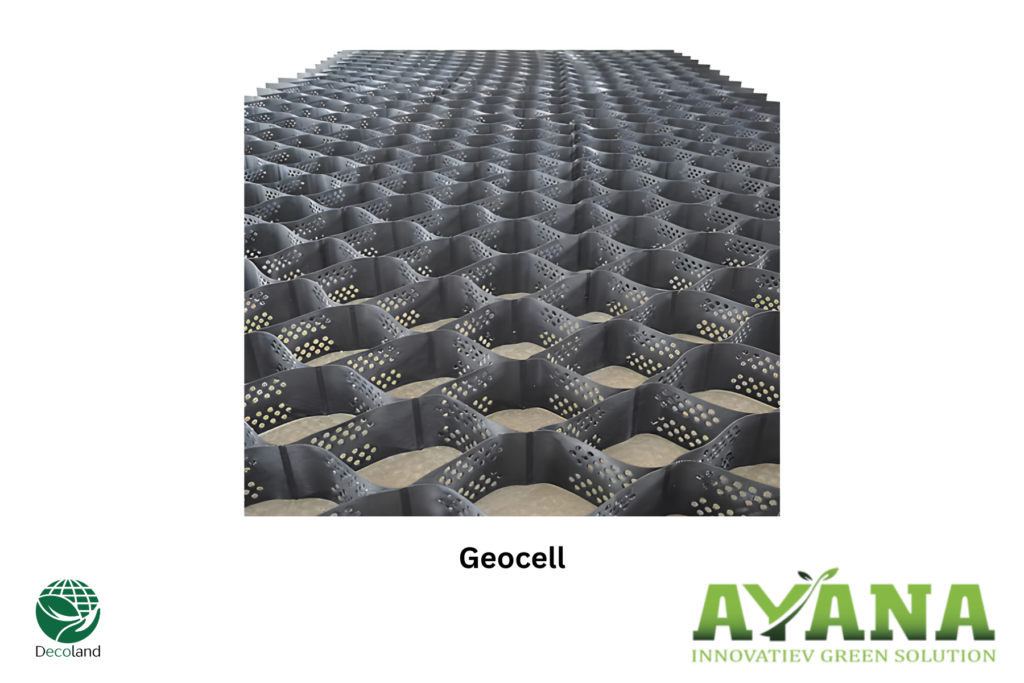

Geocell
Three-Dimensional Cellular Confinement System for Erosion Control & Soil Stabilization
Product Overview
Decoland Geocell is a high-quality erosion control and soil stabilization system featuring a three-dimensional honeycomb structure. It provides fast, economical and long-lasting solutions for soil stabilization applications and hydraulic structures while helping prevent earth loss caused by water and wind on sloping surfaces.
Manufactured from high-quality polymer strips with special additives and innovative ultrasonic welding technology, Geocell provides excellent protection and reinforcement. Its perforated cell structure allows rapid water drainage, while the textured cell walls improve adhesion and securely hold infill materials such as sand, gravel, soil and concrete.
Cell heights are available from 50 to 300 mm depending on project requirements.
Technical Specifications
| Parameter / Specification | Technical Value |
|---|---|
| Material | High Density Polyethylene (HDPE) |
| Manufacturing Location | Egypt |
| Color | Black / Green |
| Stripe Surface Treatment | Textured Surface - Perforated / Non-Perforated |
| Welding Type | Ultrasonic |
| UV and Frost | UV Resistant |
| Height / Cell Depth (H) | 75 - 100 - 150 - 200 mm (+/-10%) |
| Welding Distance (W) | 360 - 460 - 660 mm (+/-10%) |
| Nominal Expanded Cell Size | 210 x 250 / 280 x 340 / 420 x 490 mm (+/-10%) |
| Number of Cells | 5 - 15 cells/m² |
| Strip Thickness | 1.2 - 1.5 mm (+/-10%) |
| Material Density | 0.95 kg/m² (+/-10%) |
| Tensile Strength | 12 kN/m² (+/-10%) |
| Seam Peel Strength | 1000 N (+/-10%) |
Key Applications
- Erosion Control
- Soil Stabilization
- Retaining Walls
- Hydraulic Structures
- Railways
- Airports
- Shoreline Revetments
- Landscape Applications
- Landfill Linings and Covers
- Cut or Fill Embankment Slopes
- Dams and Spillways
- Roadway Shoulders
- Permanent and Temporary Access Roads
- Parking Areas
- Trails and Walkways
- Track Ballast and Sub-Ballast Structures
- Foundation Mattresses and Pipeline Protection
